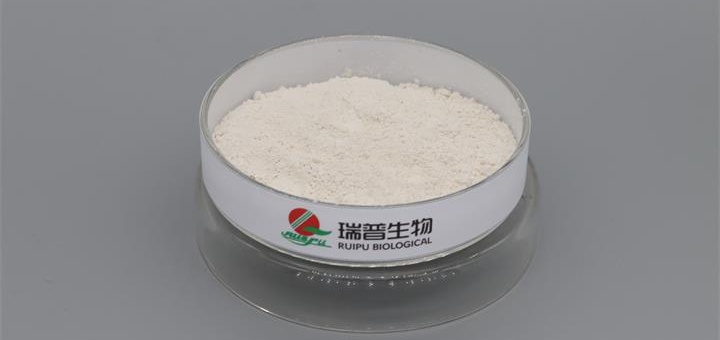

The preparation process and product quality control of ferric pyrophosphate are key links to ensure its safety and effectiveness as an iron fortifier, involving full-process management from raw material ratio to purification and refining. The following analysis covers preparation principles, mainstream processes, key parameters, and quality evaluation systems:
I. Preparation Principles and Core Reactions
The chemical composition of ferric pyrophosphate is Fe₄(P₂O₇)₃·xH₂O, and its preparation is based on the metathesis reaction between soluble iron salts and pyrophosphates. The core equation is:
4Fe³⁺ + 3P₂O₇⁴⁻ + xH₂O → Fe₄(P₂O₇)₃·xH₂O↓
The reaction essentially forms a complex precipitate of trivalent iron ions and pyrophosphate groups, whose crystal form, particle size, and purity are significantly affected by factors such as raw material concentration, pH value, and reaction temperature. Industrial production requires process optimization to control the physicochemical properties of the product to meet the needs of different application scenarios such as food fortification and medicine.
II. Mainstream Preparation Processes and Technical Details
1. Liquid Phase Precipitation Method: A Highly Common Industrial Process
Raw Material Pretreatment:
Iron Source: Ferric sulfate [Fe₂(SO₄)₃] or ferric chloride (FeCl₃) is commonly used, requiring an iron content of ≥99.0% and heavy metal (such as lead, arsenic) content of <10ppm. For example, preparing 100kg of ferric pyrophosphate requires approximately 220kg of Fe₂(SO₄)₃·9H₂O (calculated by the molar ratio of iron elements).
Pyrophosphate: Sodium pyrophosphate (Na₄P₂O₇) or potassium pyrophosphate (K₄P₂O₇), with a purity of ≥98.5%, needs to be pre-formulated into a 10%-20% aqueous solution and filtered to remove insoluble impurities.
Reaction Process Control:
Mixing Method: Slowly drop the iron salt solution into the pyrophosphate solution (reverse dropping method), or drop both into a buffer system (such as phosphate buffer) simultaneously to avoid local supersaturation leading to particle agglomeration. Studies have shown that the reverse dropping method can make the product particle size distribution more uniform (particle size range 1-5μm), while the forward dropping method easily produces large particles above 10μm.
pH Regulation: The optimal reaction pH is 2.0-3.5, at which the hydrolysis degree of Fe³⁺ is low, and the ferric pyrophosphate precipitate has high purity. When pH >4.0, iron hydroxide [Fe(OH)₃] impurities are likely to be generated, resulting in high iron content and darkening of color (from light yellow to reddish brown); when pH <1.5, pyrophosphate is prone to hydrolysis into orthophosphate, reducing the proportion of P₂O₇⁴⁻ in the product.
Temperature and Stirring Rate: The reaction temperature is controlled at 50-70℃. Heating can accelerate the precipitation rate, but exceeding 80℃ will lead to the decomposition of pyrophosphate (decomposition rate >5%); the stirring rate needs to be maintained at 200-400rpm to ensure uniform mixing and avoid uneven local concentration. For example, a company can obtain ferric pyrophosphate with a purity of >97% under the conditions of 60℃ and pH 2.5 for 2 hours.
Post-Treatment Steps:
After precipitation and filtration, wash with deionized water 3-5 times to remove residual sulfate (SO₄²⁻) or chloride ions (Cl⁻) until the conductivity of the washing solution is <10μS/cm.
The wet filter cake is vacuum-dried at 60-80℃ (vacuum degree < -0.08MPa) to avoid loss of crystal water at high temperatures (the x value deviates from the theoretical value). The drying time is usually 6-10 hours, and the moisture content of the final product is controlled at 5%-8%.
2. Solvothermal Method: Preparation of High-Purity Ferric Pyrophosphate
Suitable for pharmaceutical-grade or high-end food additives, the reaction is carried out in an ethanol-water mixed solvent (volume ratio 1:1-2:1) at a temperature of 120-180℃ and a pressure of 1-3MPa. The product has higher crystallinity under solvothermal conditions, the particle size can be controlled at 50-200nm, and the impurity content is <0.5% (such as sulfate residue <0.1%). However, this process has high energy consumption, strict equipment requirements, and the production cost is 2-3 times that of the liquid phase precipitation method.
3. Solid-Phase Synthesis Method: Small-Scale Laboratory Preparation
Mix iron oxide (Fe₂O₃) and sodium pyrophosphate in a molar ratio of 2:3, calcine at 300-400℃ for 4-6 hours, and grind and screen after cooling. This method does not require a solvent, but the product has a coarse particle size (>10μm) and poor uniformity, and high-temperature calcination may lead to the decomposition of pyrophosphate. It is only suitable for scientific research and not for industrial production.
III. Influence of Key Process Parameters on Product Quality
1. Molar Ratio of Raw Materials: Proportion of Fe³⁺ to P₂O₇⁴⁻
The theoretical molar ratio is 4:3, but in actual production, the iron salt is often excessive by 5%-10% (such as a molar ratio of 4.2:3) to ensure the complete reaction of pyrophosphate and avoid residual free pyrophosphate in the product (excessive free pyrophosphate will lead to too strong metal ion chelating ability in foods, affecting the flavor). Tests show that when Fe³⁺ is excessive by 8%, the content of free sodium pyrophosphate in the product is <0.1%, which meets the GB 1886.213-2016 standard (free pyrophosphate ≤0.5%).
2. Reaction Time and Aging Process
After the reaction is completed, aging for 1-2 hours is required to dissolve small crystals and grow large crystals, improving the uniformity of particle size. The particle size distribution of the unaged product has a large span (1-20μm), while it can be reduced to 1-5μm after aging, and the specific surface area increases from 10m²/g to 15m²/g, which is conducive to the subsequent dispersibility in foods.
3. Selection of Drying Process
Vacuum drying is better than atmospheric pressure drying because Fe³⁺ may be partially reduced to Fe²⁺ above 80℃ under atmospheric pressure (the color changes from light yellow to light green), while vacuum drying can complete dehydration at 60℃, and the Fe²⁺ content is <0.5% (the national standard requires Fe²⁺ ≤1.0%).
IV. Product Quality Control Indicators and Detection Methods
1. Core Physicochemical Indicators
Iron Content: The theoretical value is 24.6%, and the actual control is 24.0%-25.0%, which is detected by atomic absorption spectrometry (AAS). If the iron content is >25.0%, it may be doped with iron hydroxide; if it is <24.0%, the pyrophosphate may be insufficient.
Pyrophosphate (P₂O₇⁴⁻) Content: The proportion should be ≥70.0% (based on dry basis), which is determined by high-performance liquid chromatography (HPLC) or phosphomolybdate quinoline gravimetry. If the content is <65%, it indicates the decomposition of pyrophosphate or the wrong raw material ratio.
Particle Size Distribution: Food-grade ferric pyrophosphate requires D50 (median particle size) of 2-5μm and D90 (90% particle size) <10μm, which is detected by a laser particle size analyzer. Too large particle size may lead to uneven dispersion in foods (such as yellow spots in flour), and too small particle size is prone to agglomeration.
2. Safety Indicators
Heavy Metals: Lead (Pb) ≤2mg/kg, arsenic (As) ≤1mg/kg, detected by inductively coupled plasma mass spectrometry (ICP-MS). The heavy metals in the raw material iron salt need to be controlled by pretreatment (such as ion exchange resin adsorption). For example, after the ferric sulfate is treated with resin, the lead content can be reduced from 5ppm to below 0.5ppm.
Microorganisms: When used in infant foods, the total number of colonies ≤1000CFU/g, and the coliform bacteria ≤30MPN/100g, which need to meet the requirements of GB 14880-2012, and are detected by the plate counting method and the MPN method.
3. Functional Indicators
Water Solubility: The solubility at 25℃ is <0.1g/L as qualified, but the solubility of some modified products (such as compounded with organic acids) can be increased to 0.5g/L. The detection method is to weigh 1g of sample, add 100mL of deionized water, stir for 30 minutes, filter, and determine the iron content in the filtrate.
Stability: Place at 60℃ and 80% humidity for 7 days, and the color and iron content change should be <5%, which is used to evaluate the product's tolerance in food processing and storage.
V. Common Quality Problems and Solutions
Abnormal Color: Normal is light yellow. If it is reddish brown, it may be that the reaction pH is too high (generating Fe(OH)₃) or the drying temperature is too high (Fe³⁺ oxidation is aggravated). It is necessary to adjust the pH to 2.0-3.5 and control the drying temperature below 80℃.
Fluctuation of Iron Content: Caused by raw material weighing errors or incomplete reactions. The feeding amount can be adjusted in real time by online monitoring of the Fe³⁺ concentration in the reaction solution (such as ultraviolet-visible spectrophotometry, monitoring the absorbance at 248nm).
Exceeding Microbial Standards: Mostly due to incomplete cleaning of production equipment. The reaction kettle, filter, etc. need to be steam sterilized (121℃, 30 minutes), and 0.1%-0.2% citric acid is added as a bacteriostatic agent after drying.
VI. Trends in Process Optimization: Greening and Functionalization
Green Solvent Substitution: Replace traditional inorganic acids with ethanol-water systems to adjust pH and reduce wastewater discharge. For example, an enterprise uses an ethanol-acetic acid buffer system (pH 2.5), and the wastewater COD value is reduced from 5000mg/L to below 1000mg/L.
Functional Modification Integration: Synchronously add vitamin C or amino acids during the preparation process to form ferric pyrophosphate-ligand complexes, which not only improve the utilization rate but also simplify subsequent food processing steps. Experiments have shown that adding citric acid (molar ratio Fe:citric acid = 1:0.5) during preparation can increase the dissolution rate of the product in simulated intestinal juice by 40%, and there is no need to add additional modifiers.
The preparation of ferric pyrophosphate needs to balance "reaction efficiency-product purity-functional characteristics". The liquid phase precipitation method has become the mainstream due to its mature process and controllable cost, but it is necessary to control the product particle size and purity by precisely regulating parameters such as pH, temperature, and raw material ratio. Quality control from multiple dimensions of physicochemical indicators (iron content, pyrophosphate), safety (heavy metals, microorganisms), and functionality (solubility, stability) to ensure its effectiveness and safety in food fortification. Future process optimization will pay more attention to green production and functional integration to meet the needs of high-end food and pharmaceutical fields.
